Shanghai Pollux Group Co., Ltd.

Plastic Hand Extruder PLX-610A

Details

Plastic Hand Extruder (Dual Heating Type)

ModelPLX-610A
Rated Voltage230V
Frequency50/60Hz
Extruding Motor Power1300W
Hot Air Power 1600W
Welding Rod Heating Power800W
Air Temperature20-620℃
Extruding Temperature50-380℃
Extruding Volume2.0-3.0kg/h
Welding Rod DiameterΦ3.0-5.0mm
Driving Motor METABO
Body weight7.2kg
Warranty1 year

This plastic extrusion welder is the first one in China that has functions of double independent heating systems, digital display controller, 360-degree rotating welding head, motor cold start protection, hand extruder gun is usually used for welding HDPE, PE, PP, PVDF and other hot melt materials in projects like plastic water tanks, plastic pipes, plastic containers and plastic sheets.


Tips:
1. This welder start to weld when the temperature up to 270°c
2. This welder is welded with PE or PP welding rod 3.0-4.0mm, if you want 5.0mm welded, please specify before order.
3. It comes with two welding shoes, flat one and corner one.
4. Any customized demands, you can ask us directly. We have professional technicians team.

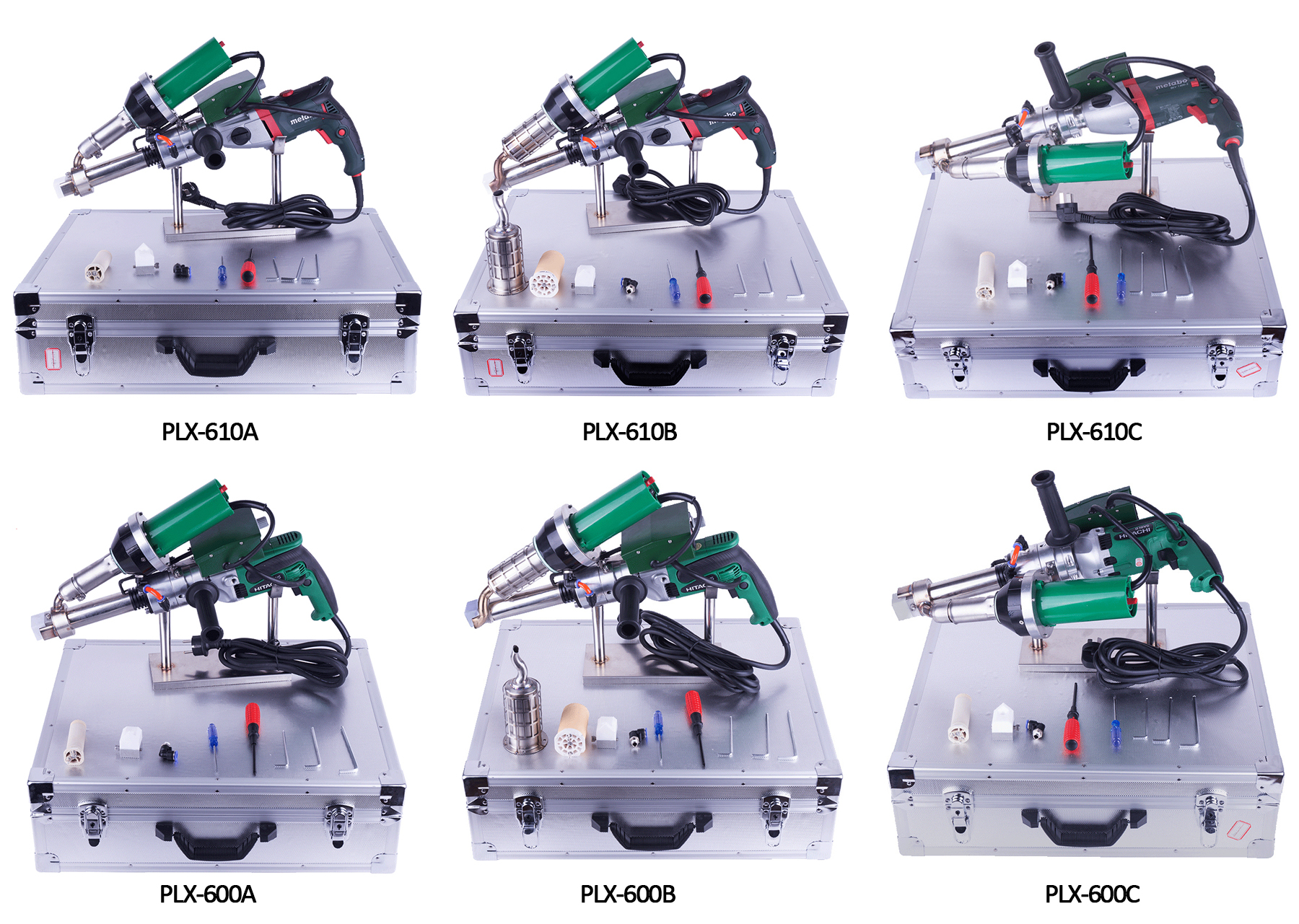

Other Model:

Plastic Extrusion Welders.jpg


Application:
